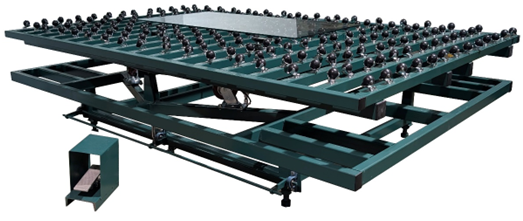

ROTATING BALL CASTER TABLE

Designed for Loading, Rotating, and Sealing Large Glass Sheets

The PST Rotating Ball Caster Table is designed for efficient handling, positioning, and sealing of large glass sheets and insulated glass units. The pneumatic vacuum hold-down system securely stabilizes the glass while the operator can manually rotate the table in controlled 90° increments using the convenient foot-bar release. Heavy-duty construction and ball caster spacing provide smooth glass movement while supporting payloads up to 1,200 lbs.

Features & Benefits

Designed for loading, positioning, rotating, and sealing large glass sheets.
Maximum payload capacity of 1,200 lbs.
Four pneumatic vacuum cups provide secure glass hold-down.
Operator foot-bar release allows convenient manual table rotation.
Positive locking mechanism indexes the table at 90° increments.
Ball caster tabletop available with 6" × 8" or 12" × 12" spacing.
Heavy-duty 84" × 120" table frame for large-format glass handling.
Other table sizes available upon request.
Requires 90 PSI compressed air for pneumatic operation.

Technical Specifications

Model: BCT-RT-84X120-6X8
Table Size: 84" × 120"
Maximum Payload: 1,200 lbs
Required Air Pressure: 90 PSI
Ball Caster Spacing: 6" × 8"
Optional Ball Caster Spacing: 12" × 12"
Vacuum Hold-Down: 4 pneumatic vacuum cups
Rotation: Manual, 90° indexed increments

Typical Applications

Large-format glass handling
Insulating glass assembly and sealing
Glass positioning and rotation
Architectural glass fabrication
Heavy glass loading and transfer

Key Advantages

Allows large glass sheets to be rotated with controlled, repeatable positioning.
Vacuum hold-down improves stability during sealing and processing.
Ball caster surface reduces friction and operator effort.
Foot-operated controls keep the operator's hands available for glass handling.
Heavy-duty construction is suited for demanding glass fabrication environments.
