4mm Uniweld WaterJet Brick
6mm Uniweld WaterJet Brick
8mmUniweld WaterJet Brick

UNIWELD WATERJET BRICK & BOARD


Standard Duty Brick  -  4mm

The 4mm Standard Brick is our most popular and most economical option with the lowest price in the marketplace. The 4mm Standard Brick option is ideal for Pure Water and Lite Abrasive users and is offered white in color with optional black for a surcharge.
Medium Duty Brick  -  6mm

The 6mm Heavy Duty Brick is ideal for Abrasive Cutting Applications and is slightly higher priced with increased durability and is offered white in color with optional black for a surcharge.
*4 mm
Standard Duty

Most Popular
Most Economical
*6 mm
Medium Duty


Abrasive Cutting
*8 mm
Heavy Duty

Heavy Abrasive
5 Axis Applications
*Flute size may vary with material lot
Top View: Welded Honeycomb Structure
Click on an image to view larger
Heavy Duty Brick  -  8mm

The 8mm Professional Duty Brick is ideal  for  heavy  abrasive and 5 axis cutting applications. The 8mm Professional Duty Brick is the heaviest  wall construction in the industry for extended operating life and is offered white in color.
Select your Material Grade
Provides a non-scratch , non- marking work surface.
Polypropylene material having no recycle fillers for increased durability.
Structural integrity - 100% THERMALLY WELDED, not limited to a partial weld.
No nails or screws installed, this eliminates delaminating and backsplash.
The no backsplash design yields cutting free of frosting marks.
Best selection in the industry to meet your specific need.
Three material grades offered  -  economy to heavy duty to meet your application.

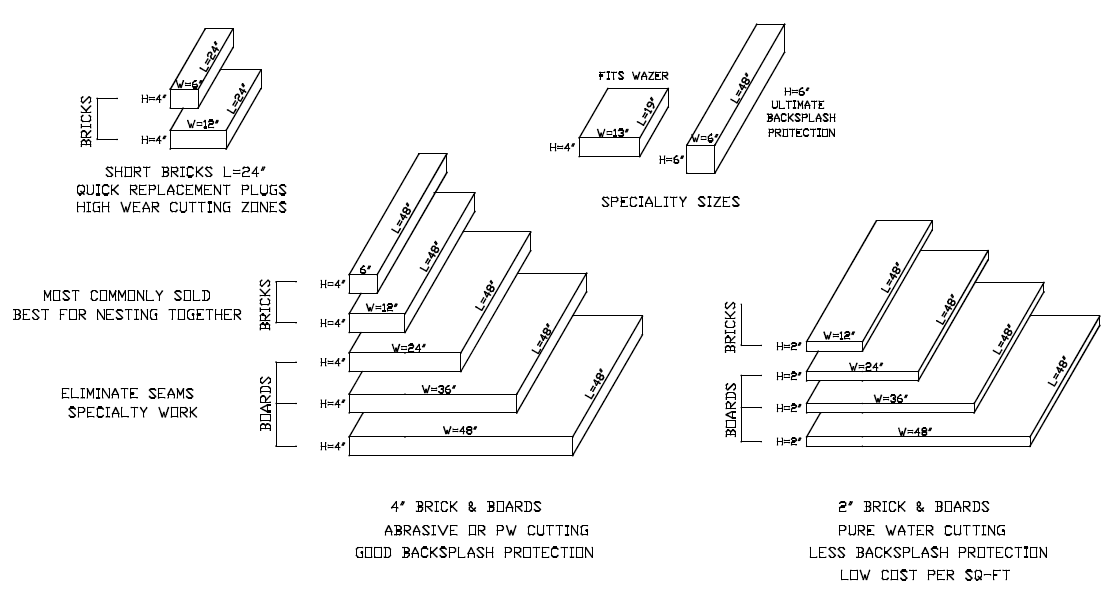

12" width bricks reduce the number of brick seams by 50%.
2" thick bricks & boards at a 35% cost savings, ideal for pure water applications.
Board offering  -  24" x 48" single piece -  no seams, ideal for delicate cutting applications.

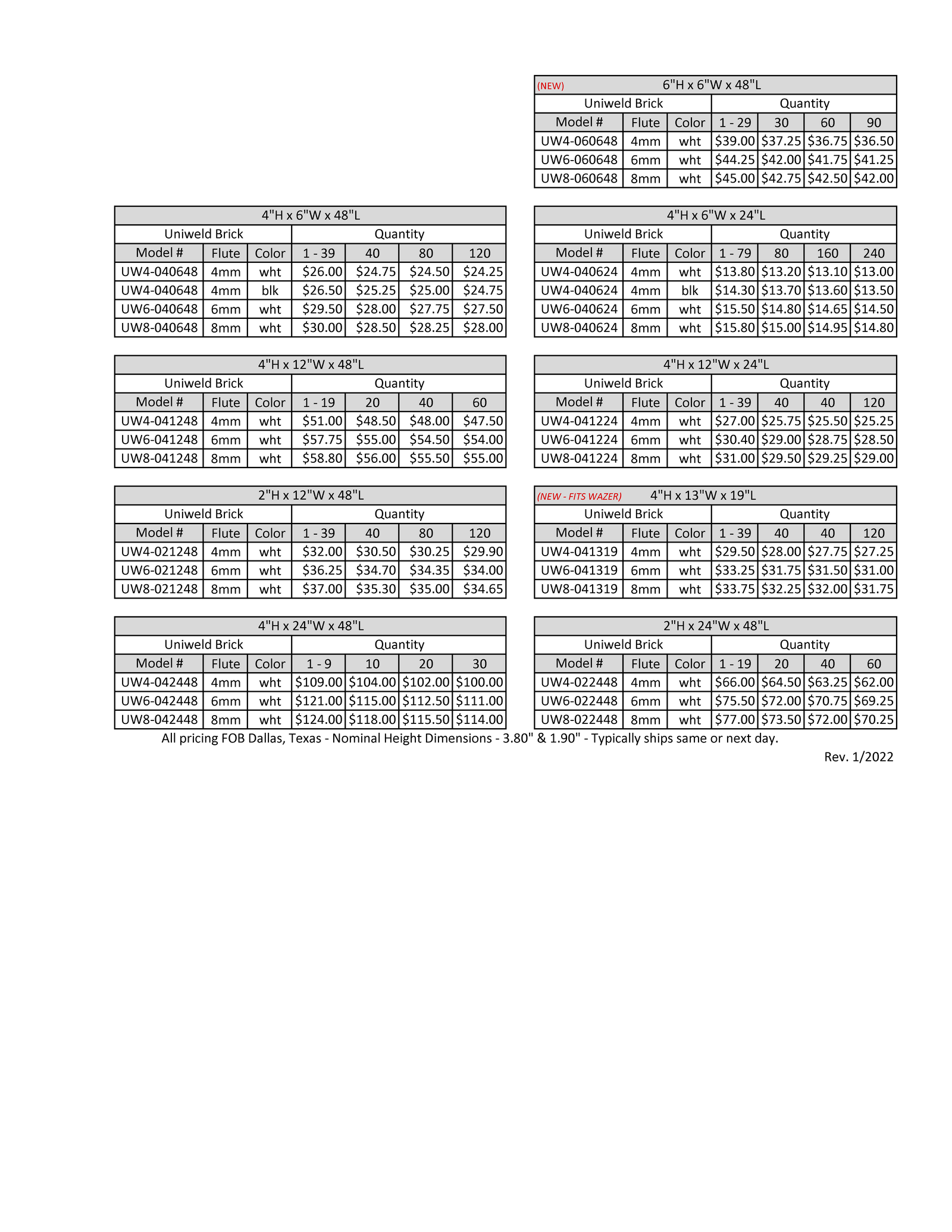

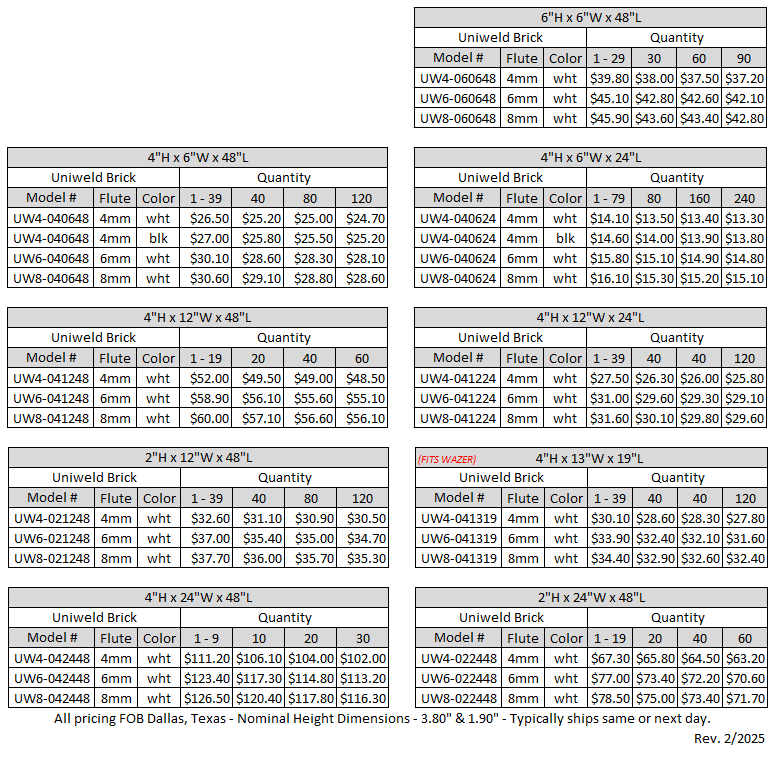

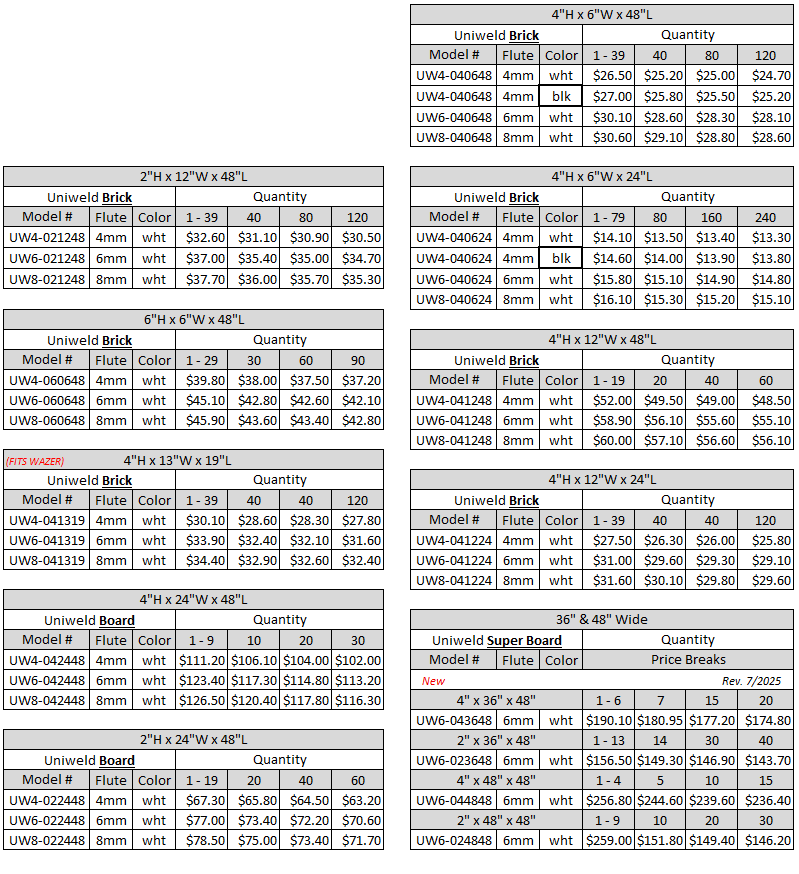

Best Selection / Factory Direct Pricing
Click here to place your order
Brick & Board Purchases Require a $400.00 Minimum Order
Gorilla Tough Waterjet Board
For information or to place an order via email wj@pstmfg.com

Download our line card

Click Shop above to browse our NEW e-commerce site

Precision Solutions for Cutting and Glass Processing Excellence


Ph: (214) 331-0002
Fax: (214) 331-0013
Hours of Operation (CST)
Monday - Friday : 8am - 4:30pm
4012 Bronze Way
Dallas, TX 75237
Purchases paid by credit card will impose a 1.5% fee. This excludes debit card transactions.
