PST VERTICAL BELT MACHINE & MACHINE PARTS

Urethane Roller Platen
Designed for Glass Fabricators

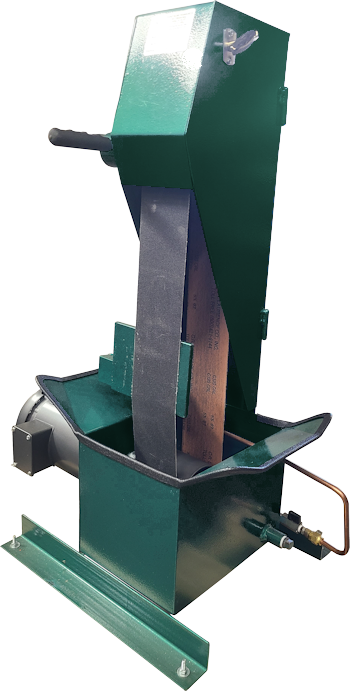

Industrial Wet Belt Sanding Unit for Glass Edge Finishing.   Capable of professional quality - seaming,  polishing, contouring, frost line or satin finishes.    Sanders vertical configuration uses the industry standard 4" x 106" Abrasive Belting.  Sander can be operated either wet or dry.

Proprietary produced Urethane Roller Platen designed and produced by PST. The pressure molded Urethane offers excellent seaming performance plus greatly enhanced wear life of the roller.   Competing sanders use an older style roller platen requiring more frequent replacement intervals.     Optional Bar and Flat Plate style platens are offered and sold separately.

PST Vertical Belt Sanding Machine operates on 120 volt power (optional 230V-1ph) electrical service powering a Baldor 1HP TEFC direct drive motor.

The provided water valve unit has a manually operated shutoff valve to provide wet or dry sanding operations.   With the valve open the electric solenoid is engaged with the drive motor to provide a twin water spray pattern for any style belt chosen  from diamond to cerium impregnated.

The belt auto-tensioning system is simple and reliable, using an industrial grade spring unit.  Sanders are shipped with 120 grit belt installed and tension preset ready to operate.  Competing units use a gas cylinder for tensioning with potential for leaking. A quick tension release handle is provided for ease of belt replacement; re-tensioning after belt replacement intervals would be a rare event saving the operator startup time.

The frame and water bucket are painted with "Hammerite" industrial coatings for durability in corrosive environments.    For additional corrosive control a sacrificial Anode is installed within the water bucket. An optional stainless steel bucket is available upon request. The bucket is oversized to control water overspray providing a cleaner working environment. The machine also comes with an adjustable  front splash guard that can be lowered or raised.
Tensioning / Tracking System

 Flat Platen (In place of Roller Platen)

VBM-FP

 $190.00

 Bar Platen (In place of Roller Platen)

VBM-BP

 $190.00

 48" Roller Bar

VBM-FRS-48

 $260.00

 Stainless Steel Bucket

VBM-SSB

 $525.00

 Export Package - 50hz Electrical

VBM- EXP

$430.00

 VBM-4X106-110-RP

 *SRP

 $2900.00

 VBM-4X106-220/1-RP

 *SRP

 $2900.00

 VBM-4X132-110-RP

 *SRP

 $3900.00

 VBM-4X132-220/1-RP

 *SRP

 $3900.00

Shipping weight and dimensions

37"W x 37" D x 77"H - 370 lbs.

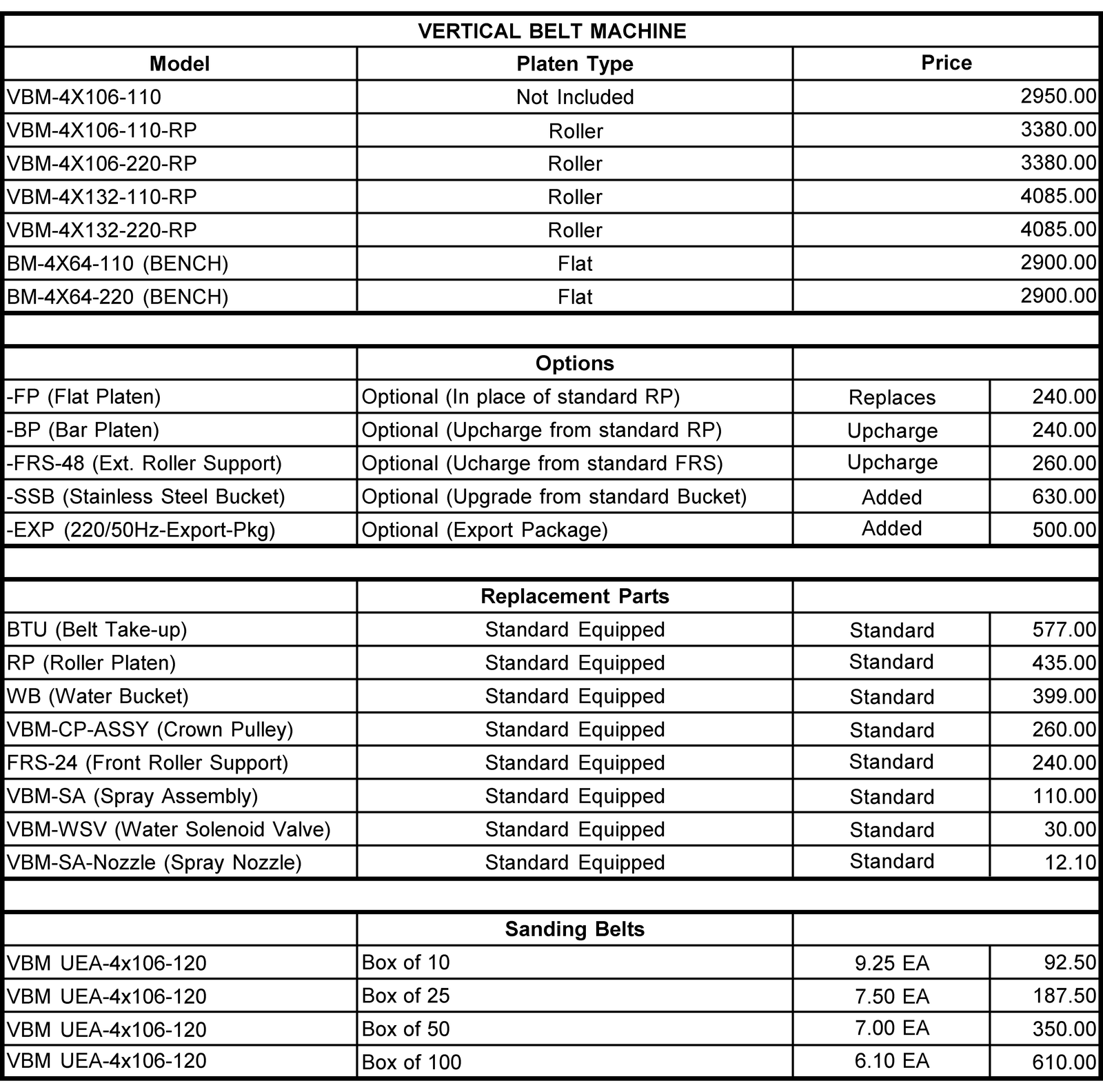

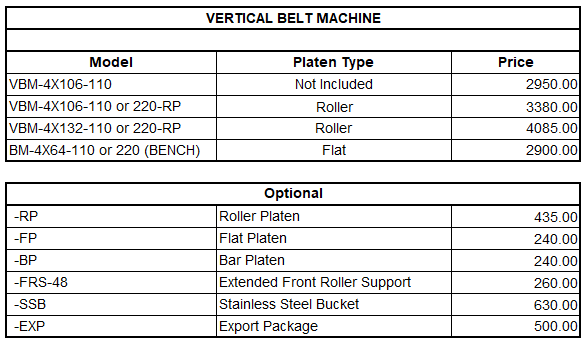

OPTIONAL COMPONENTS                             OPTIONAL                         ADD

MODELS

             ITEM #

 PLATEN

              PRICE

*SRP (Standard Roller Platen)

VBM-BP

Bar Platen
$190.00 / Each                    Rev. 7/2022
REPLACEMENT PARTS
VBM-BTU

Belt Take-up
$522.50 / Each                  Rev. 4/2022
VBM-CP

Crown Pulley
$240.00 / Each                    Rev. 4/2022
VBM-SR

Support Roller
$18.00 / Each                       Rev. 3/2022
VBM-FP

Flat Platen
$190.00 / Each                Rev. 7/2022
Support Roller
Belt Take-up
Crown Pulley
Drive Motor
UEA-4x106-120 GRIT

Abrasive Sanding Belts     Extended
1 Box of 10 $8.75 / Each   -   $87.50
1 Box of 25 $7.75 / Each   -   $193.75
1 Box of 50 $7.35 / Each   -   $367.50
1 Case 100 $7.00 / Each   -   $700.00
                                                Rev. 10/2022
Gorilla Tough Abrasive Belts
VBM-DM-1HP

Drive Motor (110V)
$577.50 / Each
VBM-FRS-STD

Front Roller Support
$200.00 / Each                    Rev. 3/2022
Front Roller Support

*Ship Ready 1 - 7 days

*All pricing FOB Dallas, TX

VBM-FRS-48

Front Roller Support - Extended
$260.00 / Each                  Rev. 7/2022
Front Roller Support
VBM-WB

Water Bucket
$319.00 / Each                  Rev. 4/2022
Water Bucket
VBM-SSWB

Stainless Steel Water Bucket
$525.00 / Each                 Rev. 3/2022
Support Roller
Bar Platen
Flat Platen
Roller Platen
VBM-SRP

Standard Roller Platen
$320.00 / Each                    Rev. 7/2022
VBM-WVA

Water Valve Assembly
$80.00 / Each                       Rev. 3/2022
Water Valve
